1M40.40 • Conservation of Energy: Ballistic Pendulum

Location: Cabinet 2

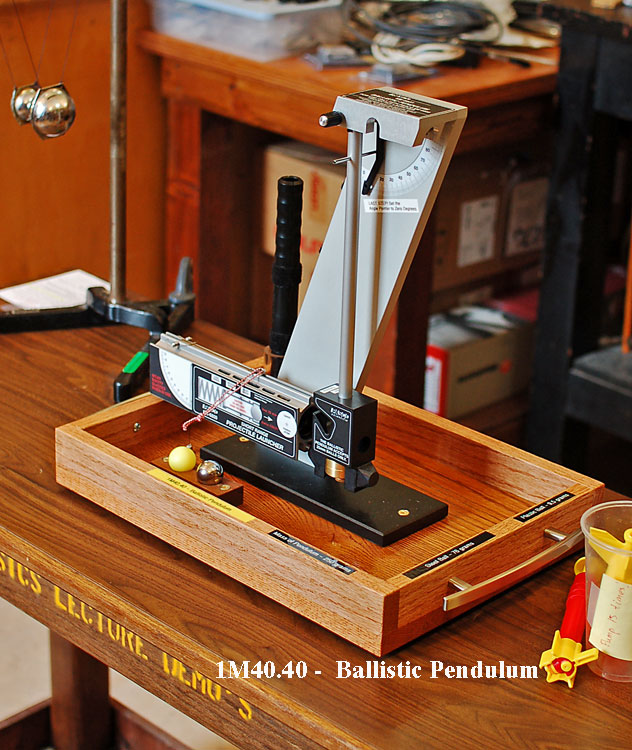

Photo shows the demonstration used at the University of Texas at Austin.

---

Instructions / Notes:

• As of February 2018 - only a small Pasco ballistic pendulum apparatus is available.
• A ~250 gram block is suspended by 30 cm rod so that it will swing freely when it is shot by a ~76 gram steel ball.
• The steel must be carefully inserted into the Pasco firing mechanism with a provided rod for this to work.
• As the ball is inserted, a firm steady force is used to compress a spring within the ballistic launcher.
• Once the ball is loaded, the pointer for the protractor must be moved downward before shooting the steel ball.
• As the block swings, it slides a pointer along a protractor.
• The steel ball works best - but a much lighter plastic ball is provide, even though it more difficult to load.
• Pull the string attached to a lever to fire the launcher.

Video shows the older version that was in use by the University of Texas at Austin until the end 2017.
